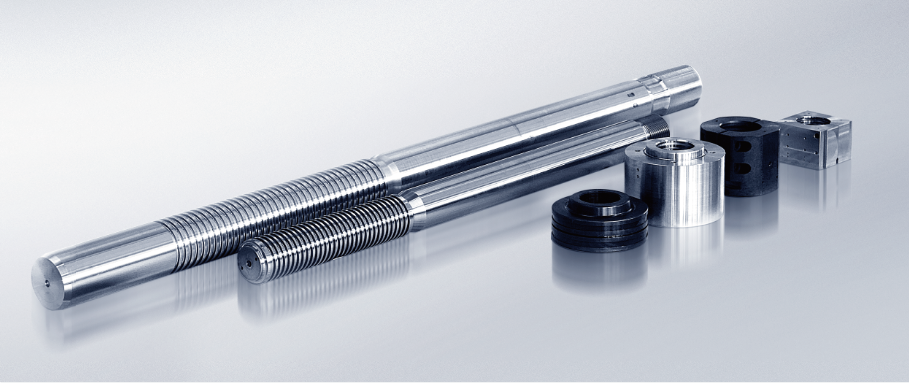

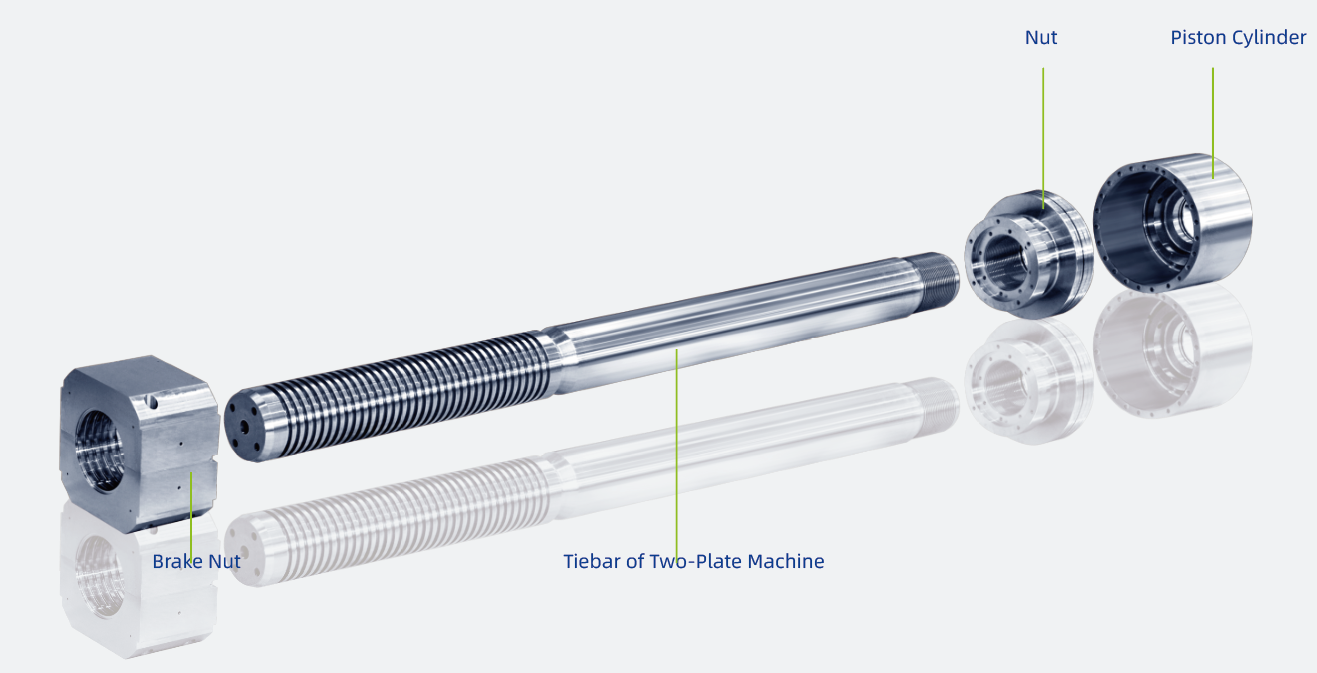

Tiebar of two-platen injection moulding machine
It is mainly used for medium and large tonnage plastic injection moulding machines over 500T, which adjusts the platen in-between
distance through the ring groove
Basic parameters：
Surface processing technology: nitriding, post-oxidation treatment, Chrome plating
Gas nitriding process: nitriding depth: more than 0.2mm, surface hardness: HV650~HV750
Chrome plating process: thickness of the plating layer: 0.02MM~0.08MM, hardness: above HV650
Processing dimensions: outer diameter: 150mm~600mm, length: 2500mm~10000mm
Surface finish Ra : Ra≤0.4
